Earthing Wire in Pakistan: Why Your House Needs It and Which Size to Use

You touch the fridge door barefoot and feel a light tingle. The washing machine gives a small shock when the floor is wet. The UPS shows an “earth fault” light, or a new AC’s PCB burns out within the first summer. Many homeowners treat these as normal. They are not. In most cases they point to one missing piece: a proper earthing system.

Earthing is the part of house wiring nobody sees and few people ask about at the dealer. It is also the part that protects people from electric shock when something goes wrong inside an appliance. A house can have the best phase and neutral wires, but without a working earth it is not safe.

This guide explains what an earthing wire does, how a house earthing system works, which earthing wire size to use for each part of the house in Pakistan, and the common mistakes to avoid.

What Is an Earthing Wire and How Does It Protect Your Home?

An earthing wire is a separate copper conductor that connects the metal body of appliances, the earth pin of sockets and the distribution board to the ground. It normally carries no current at all. It only works when there is a fault.

If a live wire inside a fridge, geyser or washing machine touches its metal body, the fault current flows through the earthing wire into the ground instead of through the person touching the appliance. The large fault current also helps the breaker or ELCB/RCD trip quickly and cut the supply.

The most common earthing wire in Pakistan is 1/.044″. The name works the same way as other wire sizes: 1 solid copper conductor with a diameter of 0.044 inch, which gives roughly 1 mm² of copper. It is usually supplied with green or green/yellow PVC insulation so that electricians can identify it easily.

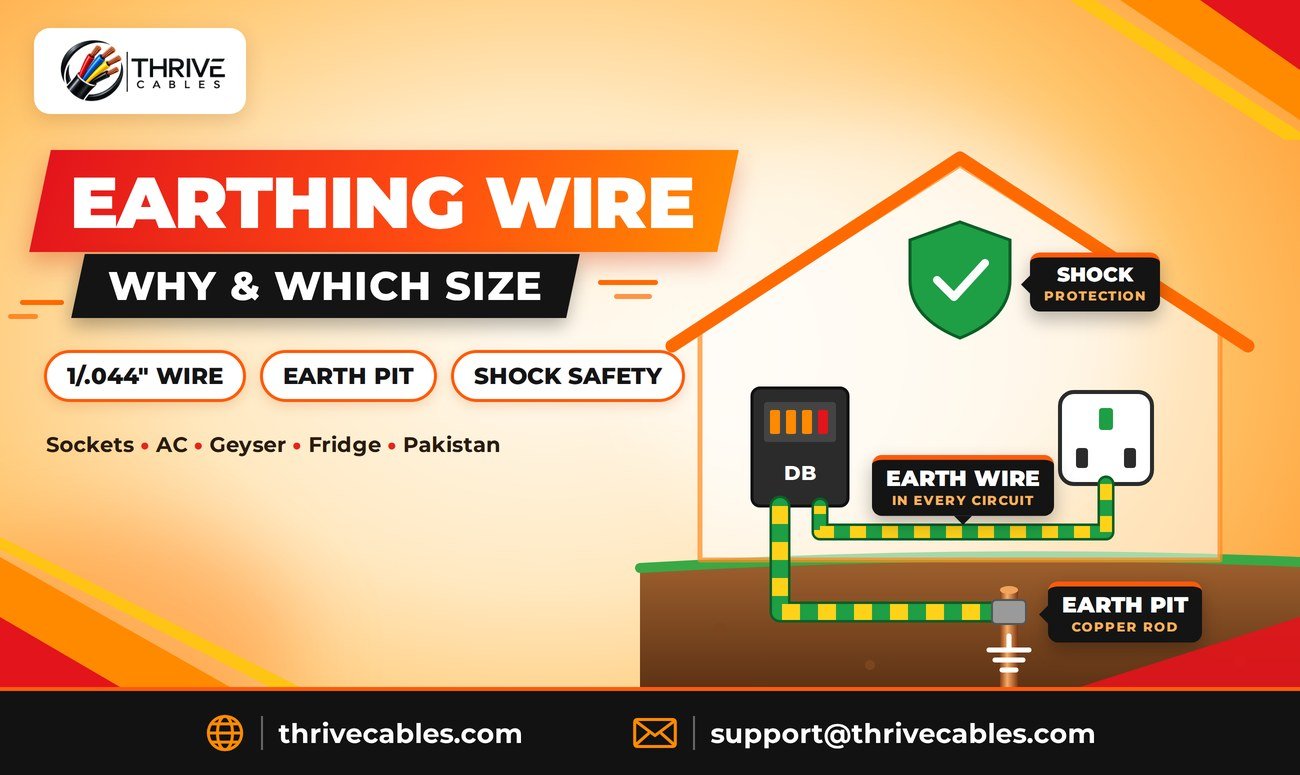

How a House Earthing System Works: Earth Pit, Main Earth Wire and Circuit Earth Wires

A proper earthing system has three parts working together. If any one of them is missing or weak, the whole system fails.

Part	What it does	What to check
Earth pit / earth electrode	A copper rod or plate buried in moist ground that sends fault current safely into the earth	Proper depth, low earth resistance, kept moist
Main earth wire	Connects the earth pit to the earth bar in the distribution board	Thick copper wire, firm connections, protected from damage
Circuit earth wires	Run from the earth bar to every socket earth pin, AC, geyser and metal fitting	Connected at every point, never skipped

The earth pit and electrode should be installed by a qualified electrician, and the earth resistance should be measured with a proper earth tester after installation.

Which Earthing Wire Size to Use in a House in Pakistan

The right earthing wire size depends on which part of the system it serves and on the size of the phase wire in that circuit. A widely used international guideline (IEC 60364) is that the earth wire of a circuit should normally be the same size as its phase wire, for phase wires up to 16 mm². Your electrician may calculate a different size for your installation, but this is a safe starting point.

Circuit / part of system	Phase wire used	Earth wire as a general guide
Lights and fans	3/29 or 1 mm²	1/.044″ earthing wire (about 1 mm²)
Normal sockets	7/29 or 2.5 mm²	Same size as phase, e.g. 7/29 or 2.5 mm²
AC (1–1.5 ton)	7/29	Same size as phase
AC (2 ton), geyser, kitchen line	7/36 (4 mm²)	Same size as phase, e.g. 7/36
Main earth wire (earth pit to board)	–	Often 7/44 (6 mm²) or larger, as decided by your electrician

All sizes above are given as a general guide. Confirm with a qualified electrician for your exact load and installation.

If you are still planning the rest of the wiring, our guide on which wire size to use for house wiring in Pakistan covers the phase and main line sizes for 5 marla, 10 marla and 1 kanal homes.

Which Appliances in Your House Must Be Earthed

Any appliance with a metal body or a heating element should be connected to earth. These are the appliances most likely to develop an internal fault and the ones people touch every day.

• Air conditioners. The outdoor unit sits in rain and sun for years; an earthed body protects anyone who touches it. See our AC wire size guide for the supply side.
• Electric geysers and water heaters. Water and electricity together make earthing essential.
• Fridges, deep freezers and water dispensers. They run day and night and are often touched with wet hands.
• Washing machines and dryers. Usually placed in wet areas.
• Electric ovens, microwaves and irons. High-power heating appliances with metal parts.
• Computers, UPS and inverter systems. Proper earthing also helps protect sensitive electronics.

Signs Your House Earthing Is Weak or Missing

Earthing problems rarely announce themselves until someone gets a shock. Watch for these warning signs and call an electrician if you notice any of them.

• Tingling or mild shock when touching a fridge, washing machine, geyser tap or metal door frame.
• UPS or inverter showing an earth fault or wiring fault indication.
• Frequent burning of AC PCBs, adapters or electronics without a clear reason.
• ELCB or RCD not tripping when it should, or the house has no ELCB/RCD at all.
• Two-pin plugs and sockets used for metal-bodied appliances.

Do not try to test the earthing yourself with a bulb or by touching wires. Ask your electrician to measure the earth resistance with a proper earth tester.

Benefits of Proper Earthing With Pure Copper Earth Wire

A good earthing system costs very little compared to the rest of the house wiring, but it protects the people and the appliances in it every day.

• Protection from electric shock. Fault current goes into the ground, not through a person.
• Faster breaker and ELCB tripping. A low-resistance earth path helps protective devices cut the supply quickly.
• Longer life for appliances and electronics. Stray voltages are carried away instead of building up on metal bodies.
• Lower fire risk. Faults are cleared quickly instead of heating wires and connections for hours.
• Peace of mind with children at home. Metal appliances stay safe to touch even if an internal fault develops.
• Reliable performance over years. Pure copper earth wire does not corrode the way mixed-metal wire can, so the earth path stays strong.

Common Earthing Mistakes to Avoid in Pakistan Homes

Most earthing failures come from shortcuts taken during construction. Avoiding them costs almost nothing at the wiring stage.

• Using the neutral as earth. Neutral and earth are different conductors with different jobs and must never be swapped.
• No earth pit at all. An earth wire connected to nothing gives no protection.
• Earth wire not connected at the socket. Three-pin sockets are fitted but the earth pin is left empty.
• Using a thinner earth wire than the circuit needs. A thin earth wire on a heavy circuit may not carry the fault current safely.
• Using low-quality or mixed-metal wire. Learn how to spot it in our guide on how to identify fake or low-quality electric wire in Pakistan.
• Never checking the earth pit. A dry or corroded pit loses its effect over time.

Quick Earthing Checklist for Your House

Use this checklist with your electrician before the walls are closed or during a wiring upgrade.

1. A proper earth pit and electrode installed by a qualified electrician.
2. A thick main earth wire from the pit to the earth bar in the distribution board.
3. An earth wire in every circuit, sized to match the phase wire.
4. Every socket earth pin, AC, geyser and metal fitting connected.
5. An ELCB or RCD fitted in the distribution board.
6. Earth resistance measured with an earth tester after installation.
7. Final design confirmed with a qualified electrician for your exact load and installation.

Why Electricians and Dealers Across Pakistan Choose Thrive Cables for Earthing Wire

Thrive Cables manufactures single core copper wire at its facility in Lahore and supplies homeowners, electricians, contractors and dealers all over Pakistan. Our 1/.044″ solid earthing wire is made with pure copper and fire-retardant PVC insulation, and we supply every matching phase size from 3/29 and 7/29 to 7/36 and 7/44 in full-length 90 meter (97 gaz) coils.

Frequently Asked Questions About Earthing Wire in Pakistan

These are the questions homeowners and buyers ask most often about earthing.

What is 1/.044 earthing wire?

1/.044 is a single solid copper conductor with a diameter of 0.044 inch, which gives roughly 1 mm² of copper. It is commonly used as the earth conductor for light and fan circuits and for earth connections at switchboards.

Can I use 1/.044 earth wire for the whole house?

As a general guide, no. The earth wire of each circuit should normally match the size of its phase wire, so socket, AC and geyser circuits usually need a thicker earth wire. Confirm the sizes with a qualified electrician.

What is the difference between earth and neutral?

Neutral carries current back from the appliance during normal use. Earth carries no current in normal use and only works during a fault to carry current safely into the ground. They must never be swapped or joined inside the house wiring.

Do inverter ACs and solar systems need earthing?

Yes. Inverter ACs, solar inverters and UPS systems all have metal bodies and sensitive electronics, and their manufacturers normally require a proper earth connection for safety and warranty.

What is the price of earthing wire in Pakistan?

Earthing wire price changes with the copper price, so it varies from week to week. Current price on request. Contact Thrive Cables for the latest price, including wholesale price for dealers and contractors.

Conclusion

Earthing is the safety net of your house wiring. It does nothing on a normal day and everything on the day a fault happens. The rule of thumb is simple: a proper earth pit, a thick main earth wire to the board, and an earth wire in every circuit that matches its phase wire, with 1/.044″ earthing wire for light and fan circuits.

Plan earthing at the same time as the rest of the wiring, never use the neutral as earth, choose pure copper wire, and have the earth resistance tested after installation. Always confirm the final design with a qualified electrician for your exact load and installation.
